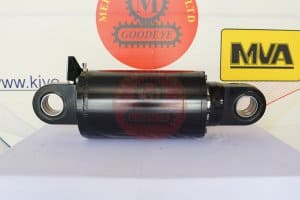

Rear Suspension Cylinder – KOMATSU – HD785 – (561-50-8B006/561-50-82003/561-50-82002/561-50-82001)
Rear Suspension Cylinder – KOMATSU – HD785 – (561-50-8B006/561-50-82003/561-50-82002/561-50-82001)
| NAME | Rear Suspension Cylinder |
| BRAND | KOMATSU |
| MODEL | HD785 |
| PART NUMBER | 561-50-8B006 561-50-82003 561-50-82002 561-50-82001 |
As a product which is completely designed and produced according to GENUINE criteria and specification. MERA offers to market the Rear Suspension Cylinder – KOMATSU – HD785 – (561-50-8B006/561-50-82003/561-50-82002/561-50-82001) with excellent performances, high durability and optimum shock absorbance for your mining and construction equipment anywhere and any conditions.
| Component | Items | Qty |
| 561-50-8B111 | Cylinder | 1 |
| 561-50-8B131 | Rod | 1 |
| 561-50-8B150 | Retainer | 1 |
| 561-50-82140 | Flange | 1 |
| 516-50-82331 | Bushing | 1 |
| 01011-81425 | Bolt | 16 |
| 01643-31445 | Washer, Flat | 16 |
| 07000-15240 | O-ring | 2 |
| 07001-05240 | Ring, Back-up | 1 |
| 568-50-12180 | Ring, Wear | 1 |
| 561-50-82360 | U-packing | 1 |
| 561-50-82381 | Seal | 1 |
| 561-50-82380 | Seal, Dust | 1 |
| 561-50-84650 | Ring | 1 |
| 707-51-21650 | Ring | 1 |
| 561-50-8A200 | Valve Assembly | 1 |
| 56D-50-31300 | Valve Assembly | 1 |
| 561-50-8A210 | Valve | 1 |
| 56D-50-31320 | Valve | 1 |
| 56E-50-28330 | Core, Valve | 1 |
| 561-50-8A220 | Cap | 1 |
| 566-50-11340 | Cap | 1 |
| 07000-11006 | O-ring | 1 |
| 07000-F2020 | O-ring | 2 |
| 561-50-82410 | Guard | 1 |
| 566-09-6A120 | Clamp | 1 |
| 561-92-62331 | Guard | 1 |
| 01010-81020 | Bolt | 2 |
| 01643-31032 | Washer | 2 |
| 561-50-82341 | Bushing | 1 |
| 561-50-82311 | Bushing | 2 |
| 561-50-82310 | Bushing | 2 |
| 04071-00140 | Ring, Snap | 4 |
| 07000-12090 | O-ring | 4 |
| 561-86-8A700 | Valve Assembly | 1 |
| 56D-86-37700 | Valve Assembly | 1 |
| 561-86-8A740 | Valve | 1 |
| 56D-86-37710 | Valve | 1 |
| 56E-50-28330 | Core, Valve | 1 |
