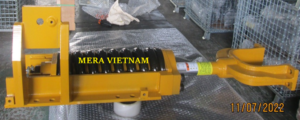

Track Adjuster Assy – KOMATSU – D31P-18 (113-30-34210/113-30-34150/113-30-34230)

NAME Track Adjuster Assy
BRAND KOMATSU
MODEL D31P-18
PART NUMBER 113-30-34210  (SPRING)
113-30-34230  (CYLINDER,L.H.)
113-30-34240  (CYLINDER,R.H.)
113-30-34150  (YOKE ASS’Y)
OTHER MODELS D31P-18, D31P-20 (Left & right)



D31P-18-RS

As a product which is completely designed and produced according to GENUINE criteria and specification. MERA offers to market the Track Adjuster Assy KOMATSU D31P-18 with excellent performances, high durability and optimum shock absorbance for your mining and construction equipment anywhere and any conditions.

Especially, MERA is doing the research and development for our Track Adjuster Assy. By the calculation of tension strength and safety factors, we improve it from the bases of genuine item (increase Rod diameter, increase hardness by heat-treatment, hard chrome plating and improve surface finish on cylinders). All of this allows our product deliver the higher performance compare to what others can do. All the steel materials are imported from Japan and other OEM components suppliers (Recoil Springs, Grease Valves, seal kits …), plus the advanced machinery allow us create the product with highest precision and incredible tolerance compare to genuine parts

Component items Qty
113-30-41210
113-30-41220
  BRACKET,L.H. [1]
  01010-51640   BOLT [12]
  01643-31645   WASHER [12]
  113-30-34210   SPRING [2]
  113-30-34230   CYLINDER,L.H. [1]
  113-30-34240   CYLINDER,R.H. [1]
  07177-05030   BUSHING [2]
  113-30-24240   SEAL [2]
  113-30-24250   SPACER [2]
  04065-06220   RING,SNAP [2]
  113-30-34190   PLATE [2]
  01010-51645   BOLT [8]
  113-30-34150   YOKE ASS’Y [2]
  113-30-24161   PISTON [2]
  07155-00515   RING,WEAR [4]
  09370-00050   U-PACKING [2]
  04064-03515   RING,SNAP [2]
  113-30-34170   BAR [2]
  113-30-24140   PLATE [2]
  01010-51020   BOLT [4]
  01602-21030   WASHER,SPRING [4]
  07959-20001   VALVE,LUBRICATOR [2]
